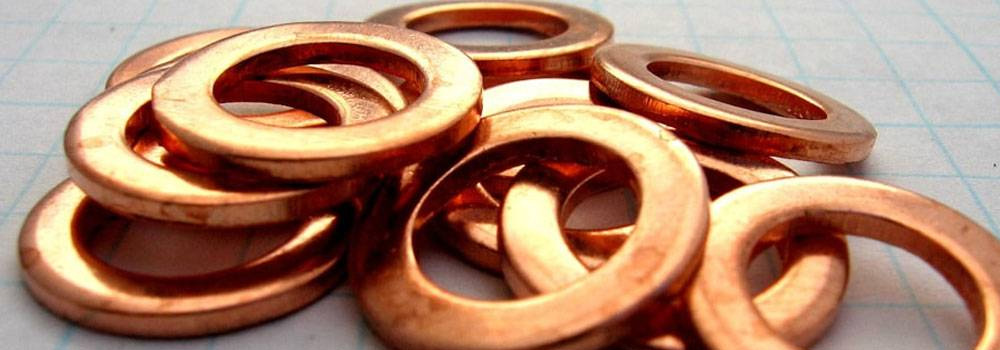

What is Copper Nickel 70/30 Washers
Copper Nickel 70/30 Washers Specification
Copper Nickel 70/30 Washers Equivalent Grade
Types of Copper Nickel 70/30 Washers
Copper Nickel 70/30 Washers Price List
Size Chart Of Copper Nickel 70/30 Washers
Dimensions of Copper Nickel 70/30 Spring Washer
Weight Chart Of Copper Nickel 70/30 Washers
Chemical Composition of Grade 70/30 Copper Nickel Washers
Mechanical Properties of Copper Nickel 70/30 Washers
Other Types of Copper Nickel 70/30 Washers
Copper Nickel 70/30 Washers Application Area
Other Stock of Copper Nickel Washers

Copper Nickel 70/30 Washer, Best Deals on Copper Nickel UNS C71500 Washers, Copper Nickel 70/30 Industrial Washers, ASTM B151 Copper Nickel 70/30 Plain Washers, Werkstoff Nr.2.0882 Spring Washer, 70/30 Cupro Nickel Locking Washer, Copper Nickel 70/30 Flat Washer, Cu-Ni 70/30 Fender Washer, Copper Nickel 70/30 Star Washer Supplier in India.

Kalpatru is a prominent stockist and seller of Cupronickel 70 / 30 Washers, which is available in wide-ranging specifications as per the variegated requirements of patrons. Cu-Ni 70 / 30 Flat Washers can be opened easily to inspect or clean them, as they are not welded together, merely bolted together. Our Copper Nickel UNS C71500 Lock Washers is known for its User friendliness, Easy usage, Compact design, Corrosion resistant, High strength, Dimensional accuracy, and so on. Cupronickel 70 / 30 Sealing Washers is as well known for its Low maintenance, Excellent performance, Ease of fabrication, Reasonable price, Cost-effective, and more. These Cu-Ni 70 / 30 Split Washers has some great features like Superior Performance, Corrosion Free, Sturdy Design, Rust-resistant, Easy to install, etc. These Copper Nickel DIN 2.0882 Slot Washers also offers Sturdy, Easy to use, Fine quality, Light weight, Available in different size, Perfect finish, Heat resistant, and more. We bring in Cupronickel 70 / 30 Machine Washers for our clients that are high pressure block type products restrict the flow of liquid in both directions. Matching up with the ever increasing requirements of the customers, our company is engaged in providing our Cu-Ni 70 / 30 Star Washers, which is manufactured in adherence with the norms of industry by using best quality materials under the guidance of skilled professionals. We offer a wide range of Copper Nickel 70 / 30 Spring Washers which are manufactured as per the international quality standards.

High Quality 70/30 Copper Nickel Ogee Washers, Copper Nickel 70/30 Square Washer, Large Selection of Copper Nickel 70/30 Washers, ASME SB151 Copper Nickel 70/30 Countersunk Washer, Cupro Nickel DIN 2.0882 Star Washers, Copper Nickel 70/30 Machine Washer, 70/30 Cu-Ni Spring Washer Dealer, Copper Nickel C71500 Tooth Lock Washer, Cuni 70/30 Split Ring Washer, Copper Nickel C71500 Washers Exporter.

Copper Nickel 70/30 Washers Specification

Specification

ASTM B151 / ASME SB151

Standard

IS, BS, ASTM, ASME

Size

M02 to M33, Custom Sizes

Length

3mm to 200mm

Dimension Standard

DIN 933, ISO 4017, DIN 931, ISO 4014, DIN 982, DIN 985, DIN 912, ISO 7380, DIN 7991, DIN 125, ISO 7379, DIN 127, DIN 1481, DIN 975, DIN 6923, DIN 934, DIN 7984

External Coating

Teflon Coating, Oxidized, Zinc Plating, Chrome Plating, Mirror Buffed, Hot Dipped Galvanizing, Epoxy Coating, Electro Polished, Passivation

Testing and Documents

Mill Test Certificates, EN 1070/304 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing

Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Copper Nickel 70/30 Washers Equivalent Grade

STANDARD	UNS	WERKSTOFF NR.
Copper Nickel 70/30	C71500	2.0882

Types of Copper Nickel 70/30 Washers

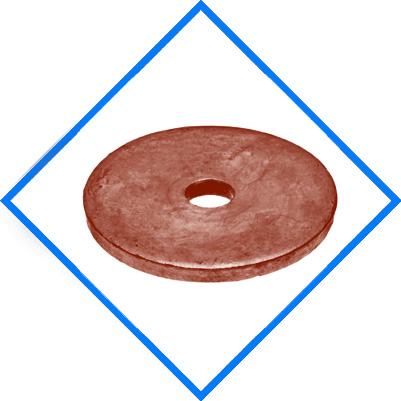

Copper Nickel 70/30 Dock Washer

Copper Nickel 70/30 Belleville Washer

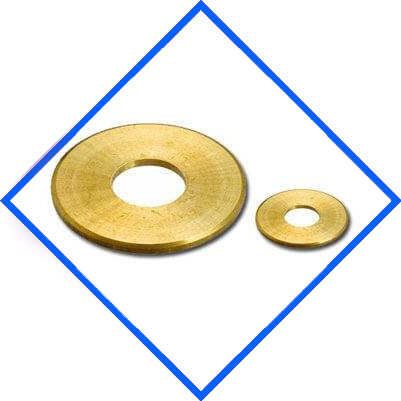

Copper Nickel 70/30 Fender Washer

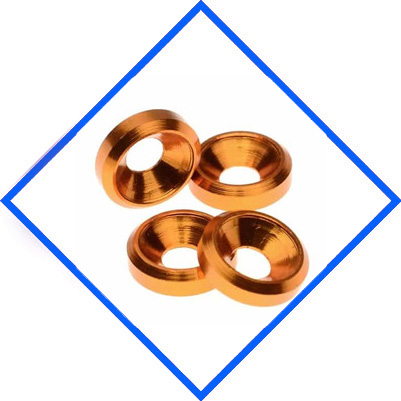

Copper Nickel 70/30 Countersunk Finishing Washer

Copper Nickel 70/30 Ogee Washer

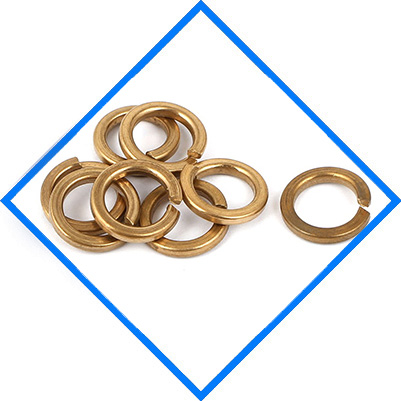

Copper Nickel 70/30 Split Washer

Copper Nickel 70/30 Flat Washer

Copper Nickel 70/30 Star Washer

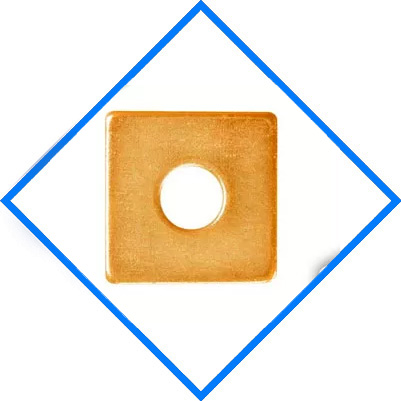

Copper Nickel 70/30 Square Washers

Copper Nickel 70/30 Spring Washer

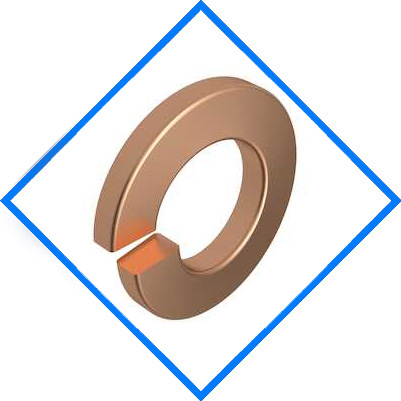

Copper Nickel 70/30 Lock Washer

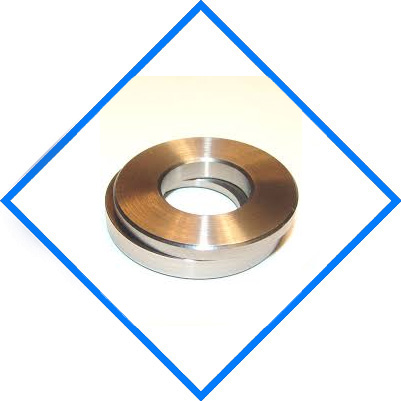

Copper Nickel 70/30 Spherical Washer

Copper Nickel 70/30 Washers Price List

We offer wide range of industrial Copper Nickel 70/30 Washers that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Cupro Nickel 70/30 Washers Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com

Size Chart Of Copper Nickel 70/30 Washers

Size	USS			SAE
Size	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)	Inside Diameter (A)	Outside Diameter (B)	Thickness (C)
#2	–	–	–	3/32″	1/4″	0.020″
#4	–	–	–	1/8″	5/16″	0.032″
#6	–	–	–	5/32″	3/8″	0.049″
#8	–	–	–	3/16″	7/16″	0.049″
#10	–	–	–	7/32″	1/2″	0.049″
#12	–	–	–	1/4″	9/16″	0.065″
1/4″	5/16″	0.734″	0.065″	9/32″	5/8″	0.065″
5/16″	3/8″	7/8″	0.083″	11/32″	11/16″	0.065″
3/8″	7/16″	1″	0.083″	13/32″	13/16″	0.065″
7/16″	1/2″	1-1/4″	0.083″	15/32″	15/16″	0.065″
1/2″	9/16″	1-3/8″	0.109″	17/32″	1-1/16″	0.095″
9/16″	5/8″	1-15/32″	0.109″	19/32″	1-5/32″	0.095″
5/8″	11/16″	1-3/4″	0.134″	21/32″	1-5/16″	0.095″
3/4″	13/16″	2″	0.148″	13/16″	1-15/32″	0.134″
7/8″	15/16″	2-1/4″	0.165″	15/16″	1-3/4″	0.134″
1″	1-1/16″	2-1/2″	0.165″	1-1/16″	2″	0.134″
1-1/8″	1-1/4″	2-3/4″	0.165″	–	–	–
1-1/4″	1-3/8″	3″	0.165″	–	–	–
1-3/8″	1-1/2″	3-1/4″	0.180″	–	–	–
1-1/2″	1-5/8″	3-1/2″	0.180″	–	–	–
1-5/8″	1-3/4″	3-3/4″	0.180″	–	–	–
1-3/4″	1-7/8″	4″	0.180″	–	–	–
2″	2-1/8″	4-1/2″	0.213″	–	–	–

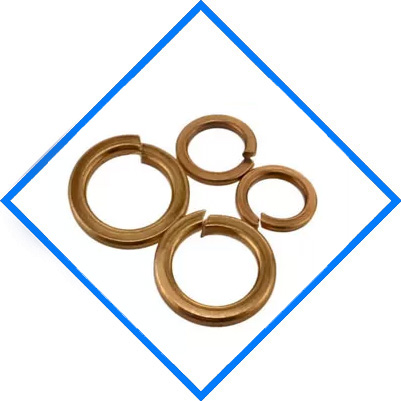

Dimensions of Copper Nickel 70/30 Spring Washer

NOM SIZE	Inner Dia (d) Basic Tol (+)		Outer Dia (d1) Max	WIDTH (b) Basic Tol (+ or -)		THICKNESS (S) Basic Tol (+ or -)		Weight per 1000 in Kgs
3	3.1	0.3	6.2	1.3	0.1	0.8	0.1	0.11
4	4.1	0.3	7.6	1.5	0.1	0.9	0.1	0.18
5	5.1	0.3	9.2	1.8	0.1	1.2	0.1	0.36
6	6.1	0.4	11.8	2.5	0.15	1.6	0.1	0.83
8	8.1	0.4	14.8	3	0.15	2	0.1	1.60
10	10.2	0.5	18.1	3.5	0.2	2.2	0.15	2.53
12	12.2	0.5	21.1	4	0.2	2.5	0.15	3.82
14	14.2	0.5	24.1	4.5	0.2	3	0.15	6.01
16	16.2	0.8	27.4	5	0.2	3.5	0.2	8.91
18	18.2	0.8	29.4	5	0.2	3.5	0.2	9.73
20	20.2	1	33.6	6	0.2	4	0.2	15.20
22	22.5	1	35.9	6	0.2	4	0.2	16.50
24	24.5	1	40	7	0.25	5	0.2	26.20
27	27.5	1	43	7	0.25	5	0.2	28.70
30	30.5	1.2	48.2	8	0.25	6	0.2	44.30
33	33.5	1.2	55.2	10	0.25	6	0.2	63.00
36	36.5	1.2	58.2	10	0.25	6	0.2	67.30
39	39.5	1.2	61.2	10	0.25	6	0.2	71.70
42	42.5	1.2	68.2	12	0.25	7	0.25	111.00
45	45.5	1.2	71.2	12	0.25	7	0.25	117.00
48	49	1.5	75	12	0.25	7	0.25	123.00
52	53	1.5	83	14	0.25	8	0.25	320.00

Weight Chart Of Copper Nickel 70/30 Washers

APPROX. WEIGHT IN KGS FOR 100 NOS
SIZE	PLAIN PUNCHED WASHER IS:2016	HEAVY WASHER IS:6610	MACHINED WASHER IS:2016	SQUARE \| TAPER \| WASHERS				SPRING WASHER FLAT SECTION IS:3063-72	SPRING WASHER SQUARE SECTION IS:6735-72 DIN : 7980	Size (Inches)	PLAIN PUNCHED WASHER BS:3410 TABLE 7
				MACHINED		HIGH STRENGTH FRICTION GRIP
				FOR CHANNELS IS:5372-75	FOR I-BEAM IS:5374-75	TYPE-B (CHANNELS) IS : 6649-85	TYPE-C ( I-BEAMS ) IS : 6649-85
M-3								0.01	0.01
M-4								0.02	0.02
M-5	0.04		0.04					0.03	0.03
M-6	0.11		0.11					0.08	0.04	1/4″	0.21
M-8	0.20		0.21	1.10	1.20			0.16	0.11	5/16″	0.35
M-10	0.39	1.60	0.40	1.00	1.10			0.25	0.20	3/8″	0.48
M-12	0.58	1.90	0.62	2.00	2.20	2.00	1.80	0.38	0.23	1/2″	1.07
M-14	0.82							0.60	0.38
M-16	1.06	2.90	1.13	3.40	3.75	9.00	8.50	0.89	0.59	5/8″	1.85
M-18	1.27							0.97	0.66
M-20	1.64	4.40	1.72	5.80	6.70	8.50	8.00	1.52	1.23	3/4″	2.91
M-22	1.75					7.50	7.00	1.65	1.36	7/8″	4.27
M-24	3.11	6.30	3.30	13.50	16.00	6.50	6.00	2.62	1.81	1″	6.13
M-27	3.94	8.00	4.23	12.50	15.00	12.00	11.50	2.87	2.06	1.1/8″	7.69
M-30	5.05	10.10	5.36	16.50	18.70	17.50	16.00	4.43	3.20	1.1/4″	9.90
M-33	7.10	12.00	7.54	21.00	23.50	23.00	22.50	6.30	3.50
M-36	8.73	14.60	9.20	25.50	29.20	26.50	26.00	6.73	5.25	1.1/2″	17.24
M-39	12.60	16.70	13.30	28.30	34.50			7.17	5.61
M-42	17.50	20.10	18.30					11.10	8.00
M-45	21.20	22.20	22.00					11.70	8.53
M-48	28.40	26.00	29.40					12.30	9.00	2″	27.78
M-52	31.90		33.00					18.20
M-56	47.90							19.30
M-60	51.60							20.30
M-64	55.40							21.80
M-68	57.40
M-72	63.40							24.00

Chemical Composition of Grade 70/30 Copper Nickel Washers

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 70-30	65.0 min	1 max	.05 max	29-33	0.4-1.0	1 max

Mechanical Properties of Copper Nickel 70/30 Washers

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Copper Nickel 70-30	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Copper Nickel 70/30 Washer
Copper Nickel 70/30 Dome Washer
Copper Nickel 70/30 Hex Washers
ASTM B151 Copper Nickel 70/30 Tab Washer
70/30 Cupro Nickel Conical Washers
Copper Nickel ASTM B151 70/30 Lock Washer
Copper Nickel 2.0882 Cup Washers
Cupro Nickel 70/30 Washers Stockist
UNS C71500 Belleville Washers Supplier
ASME SB151 70/30 Copper Nickel Wave Washer
70/30 Cupro Nickel Bevel Washers
70/30 Copper Nickel Sealing Washer
ASME SB151 70/30 Copper Nickel Hexagon Washer
Cu-Ni 70/30 Machine Washer
70/30 Copper Nickel Dock Washers Exporter
UNS C71500 Split Lock Washer
B152 Copper Nickel 70/30 Countersunk Washers
Copper Nickel 70/30 Ogee Washers Exporter
Copper Nickel 70/30 Flat Washers
ASTM B151 Copper Nickel 70/30 Tooth Lock Washer
Copper Nickel 70/30 Hex Washers
Copper Nickel 70/30 Hexagonal Washer
Copper Nickel 70/30 WNR. 2.0882 Dock Washer
Copper Nickel 70/30 Square Washer Dealer
2.0882 Copper Nickel Washer Specification

Cu-Ni 70/30 Tooth Washer
70/30 Copper Nickel C Washer
70/30 Copper Nickel Finishing Washers
Cu-Ni 70/30 Hillside Washers
Grade 70/30 Cu-Ni Spherical Washers Manufacturer
Copper Nickel 70/30 Washers Distributor
UNS C71500 Taper Washers
Cupro Nickel 70/30 Industrial Washer Price
ASTM B151 70/30 Copper Nickel Serrated Washer
Copper Nickel UNS C71500 Split Washer
Copper Nickel DIN 2.0882 Spring Washer
70/30 Copper Nickel Split Ring Washers
70/30 Copper Nickel Star Lock Washer
Cuni 70/30 Tooth Lock Washer
70/30 Copper Nickel Hexagonal Washer Dealer
Copper Nickel 2.0882 Slotted Washers
ASTM F593 348 Fender Washer at Best Price
Copper Nickel 70/30 Customized Washer
Copper Nickel 70/30 Split / Lock Washer Supplier
Copper Nickel 70/30 Ogee Washer
Copper Nickel 70/30 Countersunk Washer
DIN 2.0882 Fender Washers
ASTM B152 Copper Nickel 70/30 Spring Washers
UNS C71500 Plain Washers Supplier
Cu-Ni C71500 Washers

Our products range of Copper Nickel 70/30 Washers find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.
