Table of Content
- What is Super Duplex Steel S32760 / S32750 Hex Nuts
- Super Duplex Steel S32760 / S32750 Hex Nuts Specification
- Super Duplex Steel S32760 / S32750 Hex Nuts Equivalent Grade
- Super Duplex S32750 / S32760 Hex Nuts Standards
- Types of Super Duplex Steel S32760 / S32750 Hex Nuts
- Super Duplex Steel S32760 / S32750 Hex Nuts Price List
- Dimensions of Super Super Duplex S32750 / S32760 Hex Nuts
- Weight Chart Of Super Duplex S32750 / S32760 Hex Nuts
- Chemical Composition of Grade S32760 / S32750 Super Duplex Steel Hex Nuts
- Mechanical Properties of Super Duplex Steel S32760 / S32750 Hex Nuts
- Other Types of Super Duplex Steel S32760 / S32750 Hex Nuts
- Super Duplex Steel S32760 / S32750 Hex Nuts Application Area
- Other Stock of Super Duplex Steel Hex Nuts
Super Duplex Steel S32760 Hex Nut, Best Deals on Super Duplex Steel UNS S32760 Hex Nuts, Super Duplex Steel 2507 Industrial Hex Nuts, ASTM A194 Super Duplex Steel S32750 Hexagon Nuts, Werkstoff Nr. 1.4410 Hex Head Nut, S32760 Super Duplex Steel Heavy Hex Nuts, Super Duplex Steel S32760 Machine Nuts, Super Duplex Steel 2507 Hex Nut Supplier in India.
Kalpataru Piping Solutions is a standard exporter of Super Duplex Steel UNS S32760 / S32750 Hex Nuts, which is a good heat resistant and corrosion resistant alloy. Super Duplex Steel UNS S32760 Hexagon Nuts resists the formation of grain boundary precipitates that would degrade corrosion resistance. These Super Duplex Steel UNS S32750 Hex Head Nuts are used for several applications such as in chemical process equipment and desulfurization of flue gas equipment. Super Duplex Steel F55 Hex Machine Nuts also has good machinability, although the alloy work hardens as is true of the nickel base alloys in general. Super Duplex Steel F60 Coupling Nuts are the most popular contemporary alloys and are at large used for their superior resistances to corrosion, heat, pressure and warping. Super Duplex Steel UNS S32760 Flange Lock Nuts are non-ferrous metals by means of having properties such as toughness and high strength, high temperature, and first-rate corrosion resistance. These Super Duplex Steel UNS S32750 Heavy Hex Nuts are used moderately everywhere, from reactors and engines to chemical refinery. We as a Super Duplex Steel F55 Hex Nuts Manufacturer are used in its generators, oil refinery, and as well during everyday products like doorknobs, musical instruments and eyeglasses. We as a Super Duplex Steel F60 Hex Nuts Supplier offers resistance to pitting, stress-corrosion cracking, and crevice corrosion.
High Quality S32750 Super Duplex Steel Hex Nuts, Super Duplex Steel 2507 Hex Nut, Large Selection of Dplex Steel S32760 Hex Nuts, ASME SA194 Super Duplex 2507 Coupling Nuts, Super Duplex Steel S32750 Flange Lock Nuts, S32750 Super Duplex Steel Cap Nuts, S32760 Super Duplex Steel Hexagonal Nut Dealer, Super Duplex Stainless Steel S32750 Hex Nuts Exporter.
Super Duplex Steel S32760 / S32750 Hex Nuts Specification
Super Duplex Steel S32760 / S32750 Hex Nuts Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
Super Duplex S32750 / S32760 Hex Nuts Available Standards
| DIN Nuts | Hexagon Nuts |
|---|---|
| Din 315 Nuts | DIN 934 |
| Din 431 Nuts | BS 1768 |
| Din 555 Nuts | BS 1769 |
| Din 557 Nuts | BS 1083 |
| Din 562 Nuts | BS 3692 |
| Din 582 Nuts | ISO 4032 |
| Din 934 Nuts | ISO 4033 |
| Din 936 Nuts | ANSI B18.2.2 |
| Din 1587 Nuts | |
| Din 6923 Nuts |
Types of Super Duplex Steel S32760 / S32750 Hex Nuts

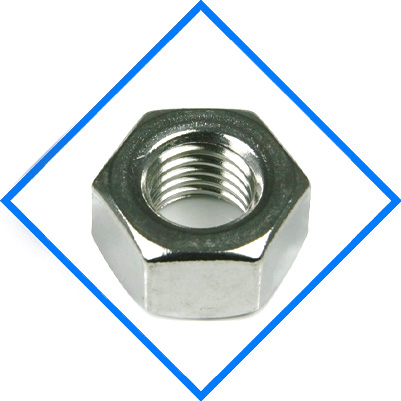

Super Duplex Steel S32760 / S32750 Heavy Hex Nut
Super Duplex Steel S32760 / S32750 Machine Hex Nut
Super Duplex Steel S32760 / S32750 Hex Head Nut

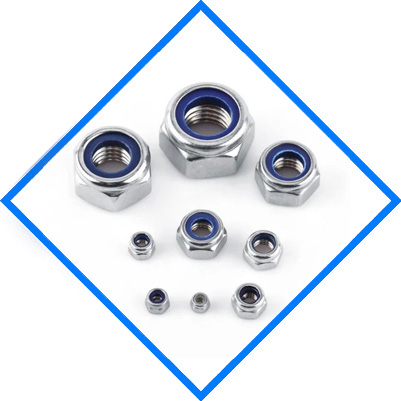

Super Duplex Steel S32760 / S32750 Nylon Lock Nut
Super Duplex Steel UNS S32760 / S32750 Hex Nuts Price List
We offer wide range of industrial Super Duplex Steel S32760 / S32750 Hex Nuts that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Super Duplex Steel 2507 Hex Nuts Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com
Dimensions of Super Duplex S32750 / S32760 Hex Nuts
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Across Flat (S) Max Min | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Thickness (M) MaxMin | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 |
| 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | |
| Across corners (E) Min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| Minor Dia at thread (min) | 3.242 | 4.134 | 4.917 | 6.647 | 8.376 | 10.106 | 11.835 | 13.835 | 15.294 | 17.294 | 19.294 | 20.752 | 23.752 | 26.211 | 29.211 | 31.67 | 34.67 | 37.129 | 40.129 | 42.587 | 46.587 |
| Minor Dia at thread (max) | 3.422 | 4.334 | 5.153 | 6.912 | 8.676 | 10.441 | 12.210 | 14.210 | 15.744 | 17.774 | 19.774 | 21.252 | 24.252 | 26.771 | 29.771 | 32.27 | 35.27 | 37.799 | 40.799 | 43.297 | 47.297 |
Hex Nuts In mm Threads To IS 6623-1985 GRADES 8S & 10S
All dimensions in mm
| DIA | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
| Pitch | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
| Head Across Flat (B) Min | 26.16 | 33 | 35 | 40 | 45 | 49 | 58.8 |
| Head Across Flat (B) Max | 27 | 34 | 36 | 41 | 46 | 50 | 60 |
| Height (H) Min Max | 16.4 | 19.4 | 22.3 | 22.9 | 26.3 | 29.1 | 35 |
| 17.1 | 20.7 | 23.6 | 24.2 | 27.6 | 30.7 | 36.6 | |
| Across corners C min | 29.56 | 37.29 | 39.55 | 45.20 | 50.85 | 55.37 | 66.44 |
| Minor Dia at thread (min) | 14.235 | 17.694 | 19.694 | 21.202 | 24.252 | 26.761 | 32.270 |
| Minor Dia at thread (max) | 14.610 | 18.144 | 20.144 | 21.702 | 24.752 | 27.321 | 32.870 |
Weight Chart Of Super Duplex S32750 / S32760 Hex Nuts
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |
Chemical Composition of Grade S32760 / S32750 Super Duplex Steel Hex Nuts
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
Mechanical Properties of Super Duplex Steel S32760 / S32750 Hex Nuts
| Ultimate Tensile Strength, ksi | 0.2% Offset Yield Strength 0.2%, ksi | Elongation in 2 inches, % | Hardness Rockwell C |
|---|---|---|---|
| 116 min. | 80 min. | 15 min. | 32 max. |
Other Types of Super Duplex Steel S32760 / S32750 Hex Nuts
Super Duplex Steel S32760 Hex Head Nut
Super Duplex Steel S32750 Hexagon Nuts
ASTM A194 Super Duplex Steel S32760 Hex Nut
S32750 Super Duplex Steel Heavy Hex Nuts
Super Duplex Steel S32760 Finished Hex Nuts
Super Duplex Steel 1.4501 Hex Nuts
Super Duplex Stainless Steel S32760 Hex Nuts Stockist
UNS S32760 Hex Flange Nuts Supplier
ASME SA194 Super Duplex 2507 Hexagonal Head Nut
2507 Super Duplex Steel Hex Machine Nut
Super Duplex S32760 Heavy Hex Jam Nuts Exporter
S32760 Super Duplex Steel Hex Jam Nuts
Super Duplex Steel UNS S32760 Nylon Insert Hex Lock Nuts
Super Duplex Steel UNS S32750 / S32760 Pin Lock Nuts
Super Duplex Steel UNS S32750 Castle Nut
Super Duplex Steel 2507 Serrated Flange Nuts
Super Duplex Steel UNS S32760 Lifting Eye Nuts
Super Duplex Steel UNS S32750 / S32760 Knurled Nuts
Super Duplex Steel UNS S32760 Slotted Nuts
Super Duplex Steel UNS S32760 Jam Nuts
Super Duplex Steel UNS S32750 / S32760 Wing Nut
Super Duplex S32750 spring T Nut Manufacturer
1.4410 Super Duplex Steel Hex Nut Specification
SAF 2507 Auto Lock Nuts
Grade S32750 Super Duplex Steel Hex Nuts Manufacturer
Super Duplex Steel 2507 Heavy Hex Nuts Distributor
Super Duplex Steel S32760 Hex Nuts
Super Duplex Steel S32750 Industrial Hex Nut Price
Super Duplex Steel UNS S32750 Nylon Insert Lock Nuts
Super Duplex Steel 2507 Hexagonal Nuts
S32760 Super Duplex Steel Hex Jam Nuts Dealer
Super Duplex Stainless Steel 2507 Machine Hex Nuts
Super Duplex Steel S32760 Dome Nuts
ASME SA194 Super Duplex Steel 2507 Eye Nuts
Super Duplex Steel S32750 Slotted Nuts
Super Duplex SAF 2507® Slotted Nut
Super Duplex Steel 2507 Coupling Nut
Super Duplex Steel UNS S32760 Wing Nuts Supplier
Super Duplex Steel UNS S32760 Imperial Nuts Supplier
Super Duplex Steel UNS S32760 Cage Nuts
Super Duplex Steel UNS S32760 Lug Nuts
Super Duplex Steel UNS S32750 Coupling Nuts Supplier
2507 Super Duplex Steel Hex Jam Nuts
SAF 2507 High Nuts Supplier
UNS S32760 Super Duplex Serrated Flange Nuts
ASTM A479 Super Duplex 2507 Hex Head Nut
Super Duplex Steel 2507 Lifting Eye Nuts
Super Duplex Steel S32760 / S32750 Hex Nuts Application Area
Our products range of Super Duplex Steel S32760 / S32750 Hex Nuts find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.
