Table of Content
- What is Copper Nickel 90/10 Hex Nuts
- Copper Nickel 90/10 Hex Nuts Specification
- Copper Nickel 90/10 Hex Nuts Equivalent Grade
- Copper Nickel 90/10 Hex Nuts Standards
- Types of Copper Nickel 90/10 Hex Nuts
- Copper Nickel 90/10 Hex Nuts Price List
- Dimensions of Copper Nickel 90/10 Hex Nuts
- Weight Chart Of Copper Nickel 90/10 Hex Nuts
- Chemical Composition of Grade 90/10 Copper Nickel Hex Nuts
- Mechanical Properties of Copper Nickel 90/10 Hex Nuts
- Other Types of Copper Nickel 90/10 Hex Nuts
- Copper Nickel 90/10 Hex Nuts Application Area
- Other Stock of Copper Nickel Hex Nuts
ASTM B151 Copper Nickel 90/10 Hexagon Nuts, Werkstoff Nr. 2.0872 Hex Head Nut, Copper Nickel 90/10 Industrial Hex Nuts, Copper Nickel 90/10 Hex Nut, Best Deals on Copper Nickel UNS C70600 Hex Nuts, Cupro Nickel 90/10 Heavy Hex Nuts, Cu-Ni 90/10 Machine Nuts, Copper Nickel 90/10 Hex Nut Supplier in India.
Kalpatru is a prominent manufacturer, exporter and distributor of Cupronickel 90 / 10 Hex Nuts, which are being designed by our expert engineers and manufactured using high grade steel. Cu-Ni 90 / 10 Hex Nuts is of a different size and is manufactured to suit nominal bore pipe and its relevant scheduled wall thicknesses. We special in supplying and trading of premium quality Copper Nickel UNS C71500 Hexagon Nuts, which is known for its Sturdy construction, Perfect finish, Corrosion resistance, Light weight, Fine quality, Easy to install, and more. The raw materials used in the production process of Cupronickel 90 / 10 Hex Head Nuts are procured from trusted experts in the domain. Our firm offers entire range of Cu-Ni 90 / 10 Machine Nuts to our valuable customers at rock bottom prices. Advanced machines and technology are used for the manufacture of these Copper Nickel 90 / 10 Cap Nuts, which are rust-resistant, damage-resistant, durable, and affordable. Different tests are conducted to ensure that our Cupronickel 90 / 10 Coupling Nuts meet the standard of the company. We are providing our customers an excellent array of Cu-Ni 90 / 10 Flange Lock Nuts, which are precise in design and have long service life. We are highly acclaimed as a well-known organization that offers an exclusive range of Copper Nickel DIN 2.0882 Heavy Hex Nuts, which are high on demand owing to its sturdy design.
High Quality 90/10 Copper Nickel Hex Nuts, Copper Nickel 90/10 Hex Nut, Large Selection of Copper Nickel 90/10 Hex Nuts, ASME SB151 Copper Nickel 90/10 Coupling Nuts, Cupro Nickel 90/10 Flange Lock Nuts, 90/10 Cuni Cap Nuts, 90/10 Copper Nickel Hexagonal Nut Dealer, Cupro Nickel 90/10 Hex Nuts Exporter.
Copper Nickel 90/10 Hex Nuts Specification
Copper Nickel 90/10 Hex Nuts Equivalent Grade
| STANDARD | UNS | WERKSTOFF NR. |
| Copper Nickel 90/10 | C70600 | 2.0872 |
Copper Nickel 90/10 Hex Nuts Standards
| DIN Nuts | Hexagon Nuts |
|---|---|
| Din 315 Nuts | DIN 934 |
| Din 431 Nuts | BS 1768 |
| Din 555 Nuts | BS 1769 |
| Din 557 Nuts | BS 1083 |
| Din 562 Nuts | BS 3692 |
| Din 582 Nuts | ISO 4032 |
| Din 934 Nuts | ISO 4033 |
| Din 936 Nuts | ANSI B18.2.2 |
| Din 1587 Nuts | |
| Din 6923 Nuts |
Types of Copper Nickel 90/10 Hex Nuts

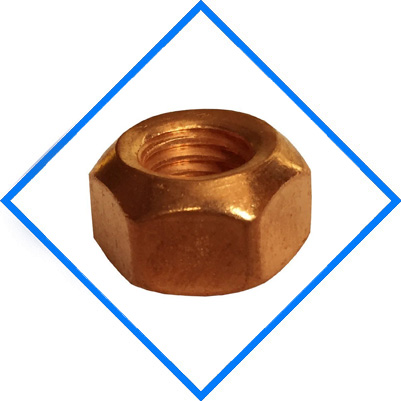

Copper Nickel 90/10 Heavy Hex Hex Nuts

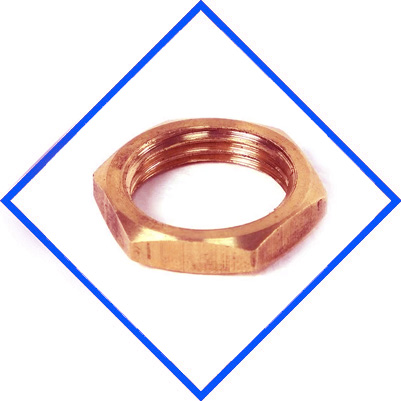

Copper Nickel 90/10 Panel Hex Nuts

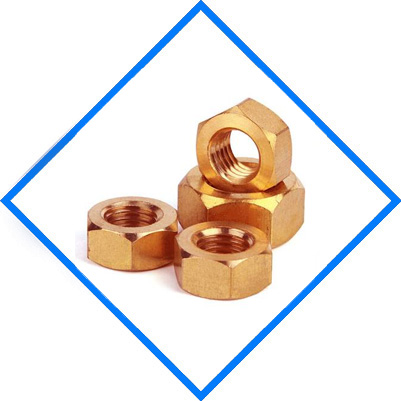

Copper Nickel 90/10 Hex Head Hex Nuts

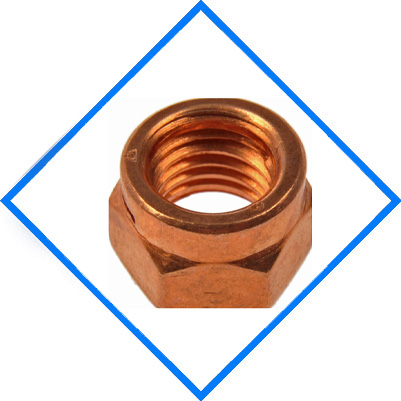

Copper Nickel 90/10 Nylon Insert Hex Nuts
Copper Nickel 90/10 Hex Nuts Price List
We offer wide range of industrial Copper Nickel 90/10 Hex Nuts that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Cupro Nickel 90/10 Hex Nuts Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com
Dimensions of Copper Nickel 90/10 Hex Nuts
| DIA | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| Across Flat (S) Max Min | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 33 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | |
| Thickness (M) MaxMin | 3.2 | 4.7 | 5.2 | 6.8 | 8.4 | 10.8 | 12.8 | 14.8 | 15.8 | 18 | 19.4 | 21.5 | 23.8 | 25.6 | 28.7 | 31 | 33.4 | 34 | 36 | 38 | 42 |
| 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 15.1 | 16.9 | 18.1 | 20.2 | 22.5 | 24.3 | 27.4 | 29.4 | 31.8 | 32.4 | 34.4 | 36.4 | 40.4 | |
| Across corners (E) Min | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.35 | 26.75 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| Minor Dia at thread (min) | 3.242 | 4.134 | 4.917 | 6.647 | 8.376 | 10.106 | 11.835 | 13.835 | 15.294 | 17.294 | 19.294 | 20.752 | 23.752 | 26.211 | 29.211 | 31.67 | 34.67 | 37.129 | 40.129 | 42.587 | 46.587 |
| Minor Dia at thread (max) | 3.422 | 4.334 | 5.153 | 6.912 | 8.676 | 10.441 | 12.210 | 14.210 | 15.744 | 17.774 | 19.774 | 21.252 | 24.252 | 26.771 | 29.771 | 32.27 | 35.27 | 37.799 | 40.799 | 43.297 | 47.297 |
Hex Nuts In mm Threads To IS 6623-1985 GRADES 8S & 10S
All dimensions in mm
| DIA | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
| Pitch | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
| Head Across Flat (B) Min | 26.16 | 33 | 35 | 40 | 45 | 49 | 58.8 |
| Head Across Flat (B) Max | 27 | 34 | 36 | 41 | 46 | 50 | 60 |
| Height (H) Min Max | 16.4 | 19.4 | 22.3 | 22.9 | 26.3 | 29.1 | 35 |
| 17.1 | 20.7 | 23.6 | 24.2 | 27.6 | 30.7 | 36.6 | |
| Across corners C min | 29.56 | 37.29 | 39.55 | 45.20 | 50.85 | 55.37 | 66.44 |
| Minor Dia at thread (min) | 14.235 | 17.694 | 19.694 | 21.202 | 24.252 | 26.761 | 32.270 |
| Minor Dia at thread (max) | 14.610 | 18.144 | 20.144 | 21.702 | 24.752 | 27.321 | 32.870 |
Weight Chart Of Copper Nickel 90/10 Hex Nuts
| Size | Finished Hex | Heavy Hex | Finished Jam | Heavy Hex Jam | Square | Heavy Square |
|---|---|---|---|---|---|---|
| 1/2″ | 3.750 | 6.540 | 2.620 | 4.000 | 5.780 | 7.870 |
| 5/8″ | 7.330 | 11.900 | 4.930 | 6.960 | 10.800 | 14.300 |
| 3/4″ | 11.900 | 19.300 | 7.700 | 11.000 | 15.400 | 23.500 |
| 7/8″ | 19.000 | 29.700 | 12.000 | 16.700 | 24.500 | 36.200 |
| 1″ | 28.300 | 42.500 | 17.600 | 23.500 | 36.300 | 51.500 |
| 1-1/8″ | 40.300 | 59.200 | 24.700 | 32.400 | 52.500 | 72.400 |
| 1-1/4″ | 54.300 | 78.600 | 36.100 | 45.800 | 70.600 | 95.500 |
| 1-3/8″ | 73.000 | 102.000 | 47.900 | 59.300 | 94.500 | 125.000 |
| 1-1/2″ | 94.300 | 131.000 | 60.900 | 74.800 | 122.000 | 161.000 |
| 1-5/8″ | 162.000 | 91.600 | ||||
| 1-3/4″ | 151.000 | 204.000 | 100.000 | 114.000 | ||
| 1-7/8″ | 241.000 | 134.000 | ||||
| 2″ | 224.000 | 299.000 | 140.000 | 165.000 | ||
| 2-1/4″ | 419.000 | 227.000 | ||||
| 2-1/2″ | 564.000 | 332.000 | ||||
| 2-3/4″ | 738.000 | 429.000 | ||||
| 3″ | 950.000 | 545.000 | ||||
| 3-1/4″ | 1194.000 | 651.000 | ||||
| 3-1/2″ | 1526.000 | 851.000 | ||||
| 3-3/4″ | 1812.000 | 1005.000 | ||||
| 4″ | 2180.000 | 1200.000 |
Chemical Composition of Grade 90/10 Copper Nickel Hex Nuts
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
Mechanical Properties of Copper Nickel 90/10 Hex Nuts
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
Other Types of Copper Nickel 90/10 Hex Nuts
Copper Nickel 90/10 Hex Head Nut
Copper Nickel 90/10 Hexagon Nuts
ASTM B151 Copper Nickel 90/10 Hex Nut
90/10 Copper Nickel Heavy Hex Nuts
Cupro Nickel 90/10 Finished Hex Nuts
Copper Nickel 2.0872 Hex Nuts
Copper Nickel 90/10 Hex Nuts Stockist
UNS C70600 Hex Flange Nuts Supplier
ASME SB151 Copper Nickel 90/10 Hexagonal Head Nut
90/10 Copper Nickel Hex Machine Nut
Cuni 90/10 Heavy Hex Jam Nuts Exporter
90/10 Copper Nickel Hex Jam Nuts
UNS C70600 Hex Nylon Lock Nut
CuNi 90/10 Hexagon Nuts
Copper Nickel 90/10 Long Hex Nut
Cupro Nickel 90/10 Slotted Hex Nuts
Cu-Ni 90/10 Hex Head Nut
Copper Nickel 90/10 Finished Hex Nuts
Cupro Nickel 90/10 Heavy Hexagon Nut
Cu-Ni 90/10 Hex Jam Nuts Exporter
Cu-Ni 90/10 Machine Hex Nuts
Cupro Nickel 90/10 Coupling Nuts
2.0872 Copper Nickel Hex Nut Specification
Cu-Ni 90/10 Auto Lock Nuts
Grade 90/10 Copper Nickel Hex Nuts Manufacturer
Copper Nickel 90/10 Heavy Hex Nuts Distributor
Cupro Nickel 90/10 Hex Nuts
Cuni 90/10 Industrial Hex Nut Price
Copper Nickel UNS C70600 Nylon Insert Lock Nuts
Cupro Nickel 90/10 Hexagonal Nuts
90/10 Copper Nickel Hex Jam Nuts Dealer
Copper Nickel 90/10 Machine Hex Nuts
Cu-Ni 90/10 Dome Nuts
ASME SB151 Copper Nickel 90/10 Eye Nuts
Copper Nickel 90/10 Slotted Nuts
ASTM B152 Copper Nickel 90/10 Square Nut
Copper Nickel 90/10 Jam Nuts Exporter
Copper Nickel 90/10 Spring Nuts
ASTM F594 Cu-Ni 90/10 Hex Coupling Nut
Copper Nickel 90/10 Self Locking Nuts
Copper Nickel 90/10 Flange Lock Nut
UNS C70600 Hexagonal Nuts
UNS C70600 Copper Nickel 90/10 Wing Nuts
Cu-Ni 90/10 Thin Hex Nuts
Cupro Nickel 90/10 Hex Round Nut
Cupro Nickel 90/10 Lifting Eye Nuts
Copper Nickel 90/10 Hex Nuts Application Area
Our products range of Copper Nickel 90/10 Hex Nuts find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.
