Paddle Blind Flanges

Table of Content

ASME B16.5 Raised Face Paddle Blind Flange, ASME / ANSI B16.5 Paddle Blind Flanges, Nickel Alloy Paddle Blind Flanges, Class 300 Paddle Blind Flanges, Carbon Steel Paddle Blind Flange, ANSI B16.5 Paddle Blind Flanges, Best Deals on Raised Face Paddle Blind Flanges, Stainless Steel Paddle Blind Flange Supplier in India.

Kalpataru Piping Solutions is an eminent stockist of Paddle Blind Flanges in the industry, which work harden rapidly. Just like standard alloy, Stainless Steel Paddle Blind Flanges can get marked up by fingerprints and grease, develop discoloration, and eventually rust. Carbon Steel Paddle Blind Flanges is nonmagnetic steel which cannot be hardened by heat treatment, but instead must be cold worked to obtain higher tensile strengths. Super Duplex Steel Paddle Blind Flanges often eliminates the necessity of annealing weldments except for applications specifying stress relief. Nickel Alloy Paddle Blind Flanges has slightly lower mechanical properties and so it is non-hardenable by heat treatment. Annealing of this Inconel Paddle Blind Flanges with heat up to 1900 - 2050°F (1038 - 1121°C), then cool rapidly. Monel Paddle Blind Flanges may be air cooled, but heavy sections should be water quenched to minimize exposure in the carbide precipitation region. To relieve stresses produced in severe forming or spinning, parts of Hastelloy Paddle Blind Flanges should be full annealed or stress relief annealed as soon as possible after forming. The combination of low yield strength and high elongation in Titanium Paddle Blind Flanges permits successful forming of complex shapes. Copper Nickel Paddle Blind Flanges can withstand much more time and abuse before showing signs of wear. The austenitic class of Alloy 20 Paddle Blind Flanges is generally considered to be weldable by the common fusion and resistance techniques.

Alloy Steel Paddle Blind Flanges, High Quality Duplex Steel Paddle Blind Flanges, ANSI B16.5 Paddle Blind Flange, ANSI B16.5 150 LBS Paddle Blind Flange, Large Selection of Inconel Paddle Blind Flanges, Hastelloy Paddle Blind Flange Dealer, Class 1500 Paddle Blind Flanges, Monel Paddle Blind Flanges, SS Paddle Blind Flanges, ANSI/ASME B16.5 Class 600 Paddle Blind Flange Exporter.

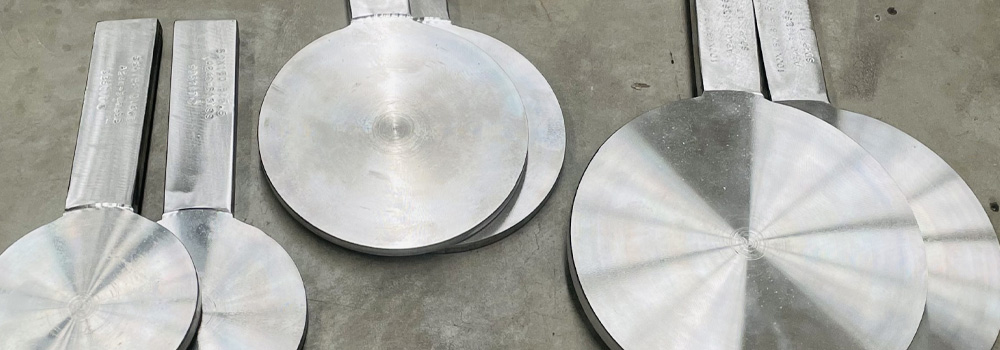

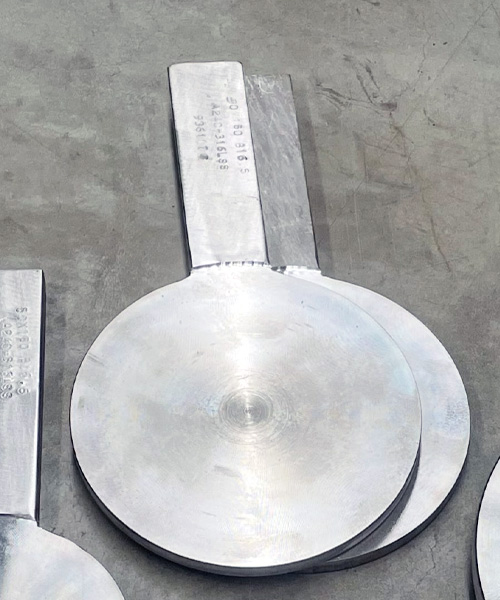

Stainless Steel Paddle Blind Flanges

ASME B16.5 Paddle Blind Flanges Specification

Size

½" (15 NB) to 48" (1200NB)

Dimension Standard

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS

BS4504 , BS4504, BS1560, BS10

Flange Face Type

Flate Face (FF), Raised Face (RF), Paddle Blind (RTJ)

Testing and Documents

Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing

Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

Paddle Blind Flanges Material & Grades

Stainless Steel Paddle Blind Flanges
ASTM A182 F 304, 304L, 304H, 309, 310, 310S, 316, 316L, 317, 317L, 321, 321H, 347, 347H, 446, 904L
Carbon Steel Paddle Blind Flanges
ASTM A105, ASTM A694 Gr. F42, 46, 52, 56, 60, 65, 70
Alloy Steel Paddle Blind Flanges
ASTM A182, F1, F5, F9, F11, F22, F91
Duplex Steel Paddle Blind Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
Super Duplex Paddle Blind Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
High Nickel Alloy Paddle Blind Flanges
ASTM B564, B160, B472, B162, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade 2 & 5), Cupro-Nickel 70/30, Cupro-Nickel 90/10.
Low Temperature Carbon Steel Paddle Blind Flanges
ASTM A350, LF2, LF3

Dimensions of Paddle Blind Flanges

Paddle Blind Flanges dimensions

ANSI B16.48 Class 150 Paddle Blanks

NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 45 16 126 3 32
3/4 54 21 131 3 32
1 64 27 136 3 32
1¼ 73 42 145 6.4 32
1½ 83 48 145 6.4 32
2 102 61 155 6.4 32
2½ 107 73 170 6.4 32
3 133 89 170 6.4 32
3½ 159 102 202 9.7 38
4 172 114 202 9.7 38
5 194 141 225 9.7 38
6 219 168 225 12.7 38
8 276 219 267 12.7 38
10 337 273 322 15.7 44
12 406 324 357 19.1 44
14 448 356 378 19.1 44
16 511 406 410 22.4 44
18 546 457 427 25.4 51
20 603 508 455 28.4 51
24 714 610 512 31.8 51
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

Class 300 Paddle Blank and Spacer Dimensions


NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 42 150 6.4 32
1½ 92 48 150 6.4 32
2 108 61 158 9.7 32
2½ 127 73 177 9.7 32
3 146 89 177 9.7 32
3½ 162 102 205 12.7 38
4 178 114 205 12.7 38
5 213 141 240 15.7 38
6 248 168 240 15.7 38
8 305 219 281 22.4 38
10 359 273 333 25.4 44
12 419 324 363 28.4 44
14 483 356 395 31.8 44
16 536 406 422 38.1 44
18 594 457 450 41.1 51
20 651 508 480 44.5 51
24 772 610 540 50.8 51
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

Class 600 Paddle Blank and Spacer Standard Dimensions


NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 51 16 129 6.4 32
3/4 64 21 136 6.4 32
1 70 27 139 6.4 32
1¼ 79 37 150 9.7 32
1½ 92 43 150 9.7 32
2 108 55 158 9.7 32
2½ 127 67 177 12.7 32
3 146 83 177 12.7 32
3½ 159 96 211 15.7 38
4 191 108 211 15.7 38
5 238 135 248 19.1 38
6 264 162 248 22.4 38
8 318 212 288 28.4 38
10 397 265 352 35.1 44
12 454 315 381 41.1 44
14 489 346 398 44.5 44
16 562 397 435 50.8 44
18 610 448 459 53.8 51
20 679 497 493 63.5 51
24 787 597 547 73.2 51
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

Class 900 Paddle Blank and Spacer Dimensions Table


NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 60 16 134 6.4 32
3/4 67 21 137 6.4 32
1 76 27 142 6.4 32
1¼ 86 37 151 9.7 32
1½ 95 43 151 9.7 32
2 140 55 174 12.7 32
2½ 162 67 186 12.7 32
3 165 83 186 15.7 32
4 203 108 217 19.1 38
5 244 135 259 22.4 38
6 286 162 259 25.4 38
8 356 212 307 35.1 38
10 432 265 370 41.1 44
12 495 315 401 47.8 44
14 518 346 412 53.8 44
16 572 397 440 60.5 44
18 635 448 471 66.5 51
20 696 497 501 73.2 51
24 835 597 571 88.9 51
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

Dimensions Chart of Class 1500 Paddle Blank and Spacer


NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 61 16 135 6.4 32
3/4 67 21 137 9.7 32
1 76 27 142 9.7 32
1¼ 86 35 151 9.7 32
1½ 95 41 151 12.7 32
2 140 53 174 12.7 32
2½ 162 63 190 15.7 32
3 172 78 190 19.1 32
4 206 102 219 22.4 38
5 251 128 256 28.4 38
6 279 154 256 35.1 38
8 349 203 303 41.1 38
10 432 255 370 50.8 44
12 518 303 412 60.5 44
14 575 333 442 66.5 44
16 638 381 472 76.2 44
18 702 429 504 85.9 51
20 752 478 530 95.3 51
24 899 575 603 111.3 51
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

Class 2500 Paddle Blank and Spacer Standard Dimensions


NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W
1/2 67 16 137 9.7 32
3/4 73 21 140 9.7 32
1 83 27 145 9.7 32
1¼ 102 35 161 12.7 32
1½ 114 41 161 15.7 32
2 143 53 175 15.7 32
2½ 165 63 201 19.1 32
3 194 78 201 22.4 32
4 232 102 232 28.4 38
5 276 128 273 35.1 38
6 314 154 273 41.1 38
8 384 198 321 53.8 38
10 473 248 390 66.5 44
12 546 289 427 79.2 44
NPS Outside
Dia
A		 Inside
Dia
B		 Center
to
End
C		 Thick
ness
t		 Handle
Width
W

ASME B16.5 Paddle Blind Flanges Price List

We offer wide range of industrial Paddle Blind Flangesthat in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Stainless Steel Paddle Blind Flanges Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com

Other Types of Paddle Blind Flanges

Stainless Steel Paddle Blind Flanges
ASTM A403 SS Paddle Blind Flanges
Raised Face Paddle Blind Flanges
ASME B16.5 Paddle Blind Flanges Specification
ASME B16.5 Class 150 Paddle Blind Flanges
Duplex Steel 2205 Paddle Blind Flanges Exporter
ASME B16.5 Paddle Blind Flanges Stockist
ANSI/ ASME B 16.5 Paddle Blind Flanges Stockist
ANSI B16.5 Paddle Blind Flanges Supplier
ASME/ANSI B16.5 Paddle Blind Flange
Carbon Steel Paddle Blind Flanges
Super Duplex 2507 Paddle Blind Flanges

ANSI B16.5 Paddle Blind Flanges Distributor
Monel Paddle Blind Flange
ASME B16.5 Paddle Blind Flanges Price
ANSI B16.5 Paddle Blind Raised Face Flanges
PN16/3 Paddle Blind Flange Price
Alloy Steel Paddle Blind Flanges
Paddle Blind Flange Manufacturer
Nickel Alloy Paddle Blind Flanges
ASME B16.5 Inconel Paddle Blind Flanges
ANSI/ASME B16.5 Hastelloy Paddle Blind Flanges
Copper Nickel Paddle Blind Flanges Dealer
Titanium Alloy Paddle Blind Flanges


Paddle Blind Flanges Application Area

Our products range of Paddle Blind Flanges find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.
