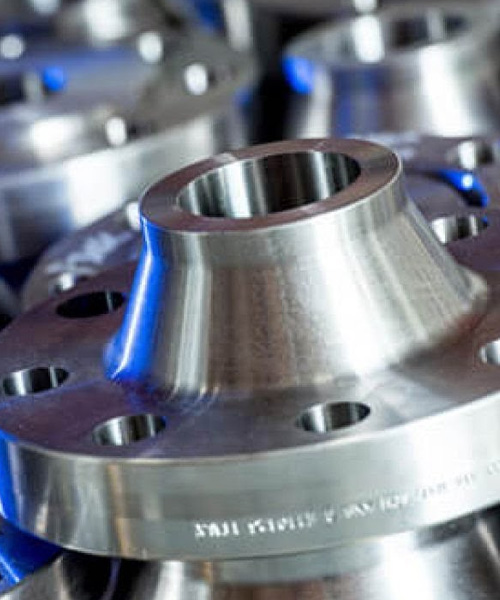

SABS / SANS 1123 Flanges

Table of Content

Carbon Steel SANS 1123 Flange, SABS 1123 Class 300 Flanges, SABS 1123 Slip on Flanges, Best Deals on Raised Face SABS 1123 Flanges, Nickel Alloy SABS 1123 Flanges, SANS 1123 Blind Flanges, SABS 1123 Raised Face Flange, Stainless Steel SABS 1123 Flange Supplier in India.

Kalpataru Piping Solutions is one of the premium manufacturer of SABS / SANS 1123 FLANGE, which are used in Heat exchangers, Catalytic converter systems, Culverts, Home heating systems, and so on. Stainless Steel SABS 1123 Flanges are often used in Automotive exhaust systems (manifolds, exhaust pipes, converters, front and tail pipes, converters, mufflers and other components). The stability of these Carbon Steel SANS 1123 Flanges is provided by the presence of niobium, titanium, or both, in the composition of steels. These Alloy Steel SABS 1123 Flanges are also used in Automotive thermostats, Fuel filters, Farm equipment components, Electrical transformer cases and more. Super Duplex Steel SANS 1123 Flanges is a ferrite rolled coil steel that has a good combination of heat resistance and corrosion resistance. Inconel SABS 1123 Flanges is a stabilized ferrite steel that provides improved oxidation and corrosion resistance compared to carbon steel. Monel SANS 1123 Flanges is actually a Ti stabilized 11 percent Cr ferritic stainless steel for elevated temperature applications up to 600 Degree C. Hastelloy SABS 1123 Flanges is quite ductile in the annealed condition and can be easily formed using all commonly employed practices. Nickel Alloy SANS 1123 Flanges is not susceptible to chloride induced stress corrosion cracking. Optimal material performance is usually achieved in Titanium SABS 1123 Flanges through efficient design, correct post-weld treatment and regular cleaning during use (if applicable).

Alloy Steel SABS 1123 Flanges, High Quality Duplex Steel SABS 1123 Flanges, Hastelloy SANS 1123 Flange Dealer, Large Selection of Inconel SABS 1123 Flanges, SANS 1123 150 LBS Forged Flange, Monel SABS 1123 Pipe Flanges, Class 1500 SABS / SANS 1123 Flanges, SS SANS 1123 Flanges, Class 600 SABS / SANS 1123 Flange Exporter.

Stainless Steel SABS / SANS 1123 Flanges

SABS / SANS 1123 Flanges Specification

Size

½" (15 NB) to 48" (1200NB)

Dimension Standard

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS

BS4504 , BS4504, BS1560, BS10

Flange Face Type

Flate Face (FF), Raised Face (RF), ANSI B16.5 (RTJ)

Special design

As per your drawing AS, ANSI, BS, DIN and BS 15 NB (1/2") to 200 NB (8") Equal and Reducing Configurations BS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange

EN 1092 - 1 Flanges Standard

ANSI DIN, GOST, Korean, UNI, BS, AS2129, Korean, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, Korean/ KS Flange, BS4504 Flange,
GB Flange, Korean Flange, GOST Flange, PSI Flange
AS 2129: Table D; Table E; Table H
B.S: BS4504 , BS3293, BS1560, BS10
ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, Korean, Custom Drawings
American standard (ANSI)
ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
British standard (BS)
German (DIN)
Any other specilised flanges
The other standard:
DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

Testing and Documents

Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing

Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

SABS / SANS 1123 Flanges Material & Grades

Stainless Steel SABS / SANS 1123 Flanges
ASTM A182 F 304, 304L, 304H, 309, 310, 310S, 316, 316L, 317, 317L, 321, 321H, 347, 347H, 446, 904L
Carbon Steel SABS / SANS 1123 Flanges
ASTM A105, ASTM A694 Gr. F42, 46, 52, 56, 60, 65, 70
Alloy Steel SABS / SANS 1123 Flanges
ASTM A182, F1, F5, F9, F11, F22, F91
Duplex Steel SABS / SANS 1123 Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
Super Duplex SABS / SANS 1123 Flanges
ASTM A182, F44, F45, F51, F53, F55, F60, F61
High Nickel Alloy SABS / SANS 1123 Flanges
ASTM B564, B160, B472, B162, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade 2 & 5), Cupro-Nickel 70/30, Cupro-Nickel 90/10.
Low Temperature Carbon Steel SABS / SANS 1123 Flanges
ASTM A350, LF2, LF3

SABS / SANS 1123 Flanges Price List

We offer wide range of industrial SABS / SANS 1123 Flanges that in compliance with IS, BS and DIN standards at best market prices in India. To know more about the latest price of Stainless Steel SABS / SANS 1123 Flanges Please Call +91 22-66337137 or Send an Email to info@flangesbolts.com

South Africa Standard SABS/SANS 1123 FLange Specifications

Nominal Bore 15 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600/3 80mm 55mm 4 M10 11mm 10mm
SABS1123-1000/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-1600/3 95mm 65mm 4 M12 14mm 10mm
SABS1123-2500/3 95mm 65mm 4 M12 14mm 14mm
SABS1123-4000/3 95mm 65mm 4 M12 14mm 14mm
Nominal Bore 20 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 90mm 65mm 4 M10 11mm 10mm
SABS1123-1000 105mm 75mm 4 M12 14mm 10mm
SABS1123-1600 105mm 75mm 4 M12 14mm 10mm
SABS1123-2500 105mm 75mm 4 M12 14mm 14mm
SABS1123-4000 105mm 75mm 4 M12 14mm 14mm
Nominal Bore 25 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 100mm 75mm 4 M10 11mm 10mm
SABS1123-1000 115mm 85mm 4 M12 14mm 10mm
SABS1123-1600 115mm 85mm 4 M12 14mm 10mm
SABS1123-2500 115mm 85mm 4 M12 14mm 16mm
SABS1123-4000 115mm 85mm 4 M12 14mm 16mm
Nominal Bore 32 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 120mm 90mm 4 M12 14mm 10mm
SABS1123-1000 140mm 100mm 4 M16 18mm 10mm
SABS1123-1600 140mm 100mm 4 M16 18mm 10mm
SABS1123-2500 140mm 100mm 4 M16 18mm 18mm
SABS1123-4000 140mm 100mm 4 M16 18mm 18mm
Nominal Bore 40 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 130mm 100mm 4 M12 14mm 10mm
SABS1123-1000 150mm 110mm 4 M16 18mm 10mm
SABS1123-1600 150mm 110mm 4 M16 18mm 10mm
SABS1123-2500 150mm 110mm 4 M16 18mm 20mm
SABS1123-4000 150mm 110mm 4 M16 18mm 20mm
Nominal Bore 50 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 140mm 110mm 4 M12 14mm 10mm
SABS1123-1000 165mm 125mm 4 M16 18mm 10mm
SABS1123-1600 165mm 125mm 4 M16 18mm 12mm
SABS1123-2500 165mm 125mm 4 M16 18mm 20mm
SABS1123-4000 165mm 125mm 4 M16 18mm 20mm
Nominal Bore 65 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 160mm 130mm 4 M12 14mm 10mm
SABS1123-1000 185mm 145mm 4 M16 18mm 12mm
SABS1123-1600 185mm 145mm 4 M16 18mm 12mm
SABS1123-2500 185mm 145mm 8 M16 18mm 22mm
SABS1123-4000 185mm 145mm 8 M16 18mm 22mm
Nominal Bore 80 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 190mm 150mm 4 M16 18mm 10mm
SABS1123-1000 200mm 160mm 8 M16 18mm 12mm
SABS1123-1600 200mm 160mm 8 M16 18mm 14mm
SABS1123-2500 200mm 160mm 8 M16 18mm 22mm
SABS1123-4000 200mm 160mm 8 M16 18mm 22mm
Nominal Bore100 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 210mm 170mm 4 M16 18mm 10mm
SABS1123-1000 220mm 180mm 8 M16 18mm 12mm
SABS1123-1600 220mm 180mm 8 M16 18mm 14mm
SABS1123-2500 235mm 190mm 8 M20 22mm 25mm
SABS1123-4000 235mm 190mm 8 M20 22mm 25mm
Nominal Bore150 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 240mm 200mm 8 M16 18mm 12mm
SABS1123-1000 250mm 210mm 8 M16 18mm 14mm
SABS1123-1600 250mm 210mm 8 M16 18mm 16mm
SABS1123-2500 270mm 220mm 8 M24 26mm 28mm
SABS1123-4000 270mm 220mm 8 M24 26mm 28mm
Nominal Bore200 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 265mm 225mm 8 M16 18mm 12mm
SABS1123-1000 285mm 240mm 8 M20 22mm 16mm
SABS1123-1600 285mm 240mm 8 M20 22mm 18mm
SABS1123-2500 300mm 250mm 8 M24 26mm 30mm
SABS1123-4000 300mm 250mm 8 M24 26mm 30mm
Nominal Bore250 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 320mm 280mm 8 M16 18mm 14mm
SABS1123-1000 340mm 295mm 8 M20 22mm 18mm
SABS1123-1600 340mm 295mm 12 M20 22mm 22mm
SABS1123-2500 360mm 310mm 12 M24 26mm 28mm
SABS1123-4000 375mm 320mm 12 M24 26mm 32mm
Nominal Bore300 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 375mm 335mm 12 M16 18mm 16mm
SABS1123-1000 395mm 350mm 12 M20 22mm 20mm
SABS1123-1600 405mm 355mm 12 M24 26mm 25mm
SABS1123-2500 425mm 370mm 12 M24 26mm 30mm
SABS1123-4000 450mm 385mm 12 M30 33mm 38mm
Nominal Bore500 Flange Diameter PCD Bolts Boltsize Hole Size Thickness
SABS1123-600 645mm 600mm 20 M20 22mm 25mm
SABS1123-1000 670mm 620mm 20 M24 26mm 32mm
SABS1123-1600 715mm 650mm 20 M30 33mm 40mm
SABS1123-2500 730mm 660mm 20 M30 33mm 50mm
SABS1123-4000 755mm 670mm 20 M39 39mm 70mm

South Africa Standard SABS/SANS 1123 FLange CLASS 600KPA Specifications

Nominal pressure 600 kPa 600/2 = Table 4 600/4 = Table 6 600/3 = Table 5 600/8 = Table 8
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 75 8 10 8 10 16 28 35 2 M10 4 11 50 26 6 4 25
15 21.3 80 8 10 8 10 16 30 40 2 M10 4 11 55 30 6 4 30
20 26.9 90 8 10 8 10 18 32 50 2 M10 4 11 65 38 6 4 40
25 33.7 100 8 10 8 10 18 35 60 2 M10 4 11 75 42 6 4 50
32 42.4 120 8 10 8 10 20 35 70 2 M12 4 14 90 55 6 6 60
40 48.3 130 8 10 8 10 20 38 80 3 M12 4 14 100 62 7 6 70
50 60.3 140 8 10 8 10 22 38 90 3 M12 4 14 110 74 8 6 80
65 76.1 160 8 10 8 10 26 38 110 3 M12 4 14 130 88 9 6 100
80 88.9 190 10 10 10 10 28 42 128 3 M16 4 18 150 102 10 8 110
100 114.3 210 10 10 10 10 34 45 148 3 M16 4 18 170 130 10 8 130
*125 139.7 240 13 12 13 12 39 48 178 3 M16 8 18 200 155 10 8 160
150 168.3 265 13 12 13 12 39 48 202 3 M16 8 18 225 184 12 10 185
*175 193.7 295 13 14 – 14 – 52 230 3 M16 8 18 255 210 12 10 –
200 219.1 320 13 14 – 14 – 55 258 3 M16 8 18 280 236 15 10 –
*225 244.5 345 16 16 – 16 – 58 285 3 M16 8 18 305 264 15 12 –
250 273 375 16 16 – 16 – 60 312 3 M16 12 18 335 290 15 12 –
300 323.9 440 20 20 – 20 – 62 365 4 M20 12 22 395 342 15 12 –
350 355.6 490 22 22 – 22 – 62 415 4 M20 12 22 445 385 15 12 –
400 406.4 540 22 22 – 22 – 65 465 4 M20 16 22 495 438 15 12 –
450 457.2 595 24 25 – 25 – 65 520 4 M20 16 22 550 492 15 12 –
500 508 645 24 25 – 25 – 68 570 4 M20 20 22 600 538 15 12 –
550 559 705 24 28 – 28 – 68 620 5 M24 20 26 655 590 16 12 –
600 609.6 755 24 30 – 30 – 70 670 5 M24 20 26 705 640 16 12 –
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 1000KPA Specification

Nominal pressure 1000 kPa 1000/2 = Table 9 1000/4 = Table 11 1000/3 = Table 10 1000/8 = Table 13
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 10 10 12 20 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 12 12 14 26 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 12 12 14 32 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 14 14 16 36 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 16 16 18 38 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 18 16 18 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 18 18 18 62 268 3 M20 8 22 295 235 16 10
*225 244.5 370 18 18 18 62 290 3 M20 8 22 325 265 16 10
250 273.0 395 20 20 20 68 320 3 M20 12 22 350 292 16 12
300 323.9 445 22 22 22 68 370 4 M20 12 22 400 344 16 12
350 355.6 505 26 25 25 68 430 4 M20 16 22 460 385 16 12
400 406.4 565 26 25 25 72 482 4 M24 16 26 515 400 16 12
450 457.2 615 28 30 30 72 532 4 M24 20 26 565 492 16 12
500 508.0 670 28 32 32 75 585 4 M24 20 26 620 542 16 12
550 559.0 730 28 35 35 80 635 5 M24 20 26 675 592 18 12
600 609.6 780 28 38 38 80 685 5 M24 20 26 725 642 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 1600KPA Specification

Nominal pressure 1600 kPa 1600/2 = Table 14 1600/4 = Table 16 1600/3 = Table 15 1600/8 = Table 18
NB Pipe O.D.
d1		 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 8 10 8 10 14 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 8 10 8 10 14 35 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 8 10 8 10 16 38 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 8 10 8 10 16 38 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 10 10 10 10 20 40 78 2 M16 4 18 100 56 6 6 60
40 48.3 150 10 10 10 10 20 42 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 12 12 12 12 22 45 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 12 12 12 12 26 45 122 3 M16 4 18 145 90 10 6 105
80 88.9 200 14 14 14 14 28 50 138 3 M16 8 18 160 105 10 8 118
100 114.3 220 14 14 14 14 34 52 158 3 M16 8 18 180 131 12 8 140
*125 139.7 250 16 16 16 16 38 55 188 3 M16 8 18 210 156 12 8 168
150 168.3 285 18 18 18 18 40 55 212 3 M20 8 22 240 184 12 10 195
*175 193.7 315 20 20 20 60 242 3 M20 8 22 270 210 12 10
200 219.1 340 22 22 22 62 268 3 M20 12 22 295 235 16 10
*225 244.5 370 24 22 22 66 294 3 M20 12 22 325 265 16 10
250 273.0 405 24 25 25 70 320 3 M24 12 26 355 292 16 12
300 323.9 460 28 28 28 78 378 4 M24 12 26 410 344 16 12
350 355.6 520 30 30 30 82 438 4 M24 16 26 470 390 16 12
400 406.4 580 32 35 35 85 490 4 M24 16 26 525 445 16 12
450 457.2 640 34 40 40 87 550 4 M24 20 26 585 496 16 12
500 508.0 715 34 40 40 90 610 4 M30 20 33 650 548 16 12
550 559.0 775 36 95 670 5 M30 20 33 710 600 18 12
600 609.6 840 36 50 95 725 5 M30 20 33 770 652 18 12
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

South Africa Standard SABS/ SANS 1123 Flanges Class 2500KPA Specification

Nominal pressure 2500 kPa 2500/2 = Table 19 2500/4 = Table 21 2500/3 = Table 20 2500/8 = Table 23
NB Pipe O.D.d1 Flange Raised Face Bolt Drilling Neck Boss
D b b1 b2 b3 h h1 d4 f No. d2 k d3 h2 r d5
10 17.2 90 12 12 10 12 16 35 40 2 M12 4 14 60 28 6 4 30
15 21.3 95 14 14 11 14 17 38 45 2 M12 4 14 65 32 6 4 35
20 26.9 105 14 14 11 14 19 40 58 2 M12 4 14 75 40 6 4 45
25 33.7 115 16 16 12 16 22 40 68 2 M12 4 14 85 46 6 4 52
32 42.4 140 18 18 14 18 26 42 78 2 M16 4 18 100 55 6 6 60
40 48.3 150 18 20 14 20 28 45 88 3 M16 4 18 110 64 7 6 70
50 60.3 165 20 20 17 20 31 48 102 3 M16 4 18 125 75 8 6 85
65 76.1 185 22 22 17 22 33 52 122 3 M16 8 18 145 90 10 6 105
80 88.9 200 24 22 18 22 34 58 138 3 M16 8 18 160 105 12 8 118
100 114.3 235 24 25 21 25 41 65 162 3 M20 8 22 190 134 12 8 145
*125 139.7 270 26 28 24 28 46 68 188 3 M24 8 26 220 162 12 8 170
150 168.3 300 28 30 24 30 48 75 218 3 M24 8 26 250 192 12 10 200
*175 193.7 330 30 30 – 25 – 75 248 3 M24 12 26 280 218 15 10 –
200 219.1 360 30 30 – 30 – 80 278 3 M24 12 26 310 244 16 10 –
*225 244.5 395 30 30 – 30 – 84 306 3 M24 12 26 340 270 16 10 –
250 273.0 425 30 30 – 30 – 88 335 3 M24 12 26 370 298 18 12 –
300 323.9 485 34 32 – 32 – 92 395 4 M24 16 26 430 352 18 12 –
350 355.6 555 38 35 – 35 – 100 450 4 M30 16 33 490 398 20 12 –
400 406.5 620 40 40 – 40 – 110 505 4 M30 16 33 550 452 20 12 –
450 457.2 670 42 45 – 45 – 110 555 4 M30 20 33 600 505 20 12 –
500 508.0 730 44 50 – 50 – 125 615 4 M30 20 33 660 558 20 12 –
550 559.0 785 – 55 – – – – 670 5 M36 20 39 710 – – – –
600 609.6 845 46 60 – – – 125 720 5 M36 20 39 770 660 20 12 –
* NP = Nominal Pressure 600kPa, 1000kPa, 1600kPa, 2500kPa, 4000kPa

SABS 1123 T1000/3 Backing Ring Flange with Hot Dipped Galvanized HDPE Pipe

Pipe OD ID OD Thickness PCD No Holes Hole ID Weight Radius
mm mm mm mm mm mm KG mm
40 140 10 100 4 18
50 150 10 110 4 18
63 165 12 125 4 18
75 185 12 145 4 18
90 200 12 160 8 18
110 220 12 180 8 18
125 220 12 180 8 18
140 250 14 210 8 18
160 285 16 240 8 22
180 285 16 240 8 22
200 340 18 295 8 22
225 340 18 295 8 22
250 395 18 350 12 22
280 395 20 350 12 22
315 445 22 400 12 22
355 505 25 460 16 22
400 565 25 515 16 26
450 615 30 565 20 26
500 670 30 620 20 26
560 730 35 675 20 26
630 835 36 780 20 26
BS T/D BACKING RING FLANGE WITH HOT DIPPD GALVANIZED FOR HDPE PIPE
Pipe OD ID OD Thickness PCD No Holes Hole ID Weight Radius
mm mm mm mm mm mm KG mm
40 120 6 87.3 4 14
50 133.4 6 98.4 4 14
63 152.4 8 114.3 4 18
75 165.1 8 127 4 18
90 184.1 10 146 4 18
110 215.9 10 177.8 4 18
125 215.9 10 177.8 4 18
125 PVC 250 13 209.6 8 18
140 250 13 209.6 8 18
160 279.4 13 235 8 18
180 279.4 13 235 8 18
200 336.6 13 292.1 8 18
225 336.6 13 292.1 8 18
250 406.4 16 355.6 8 22
280 406.4 16 355.6 8 22
315 457.2 20 406.4 12 22
355 527.1 22 469.9 12 26
400 577.9 22 520.7 12 26
450 641.4 25 584.2 12 26
500 705 29 641.4 16 26
560 825.5 30 755.7 16 26
630 825.5 32 755.7 16 26

Other Types of SABS / SANS 1123 Flanges

Stainless Steel SABS 1123 Flanges
SS SANS 1123 Flanges
SABS 1123 Raised Face Flanges
SABS 1123 Flanges Specification
Class 150 SABS 1123 Flanges
Duplex Steel 2205 SANS 1123 Flanges Exporter
SABS 1123 Flanges Stockist
SANS 1123 Flanges Stockist
SABS 1123 Flanges Supplier
SABS / SANS 1123 Blind Flange
Carbon Steel SANS 1123 Loose Flanges
Super Duplex 2507 SANS 1123 Flanges

SABS / SANS 1123 Forged Flanges Distributor
Monel SABS 1123 Flange
SABS 1123 Flanges Price
Raised Face SANS 1123 Flanges
SABS 1123 Flange Price
Alloy Steel SANS 1123 Flanges
SABS 1123 Flange Manufacturer
Nickel Alloy SANS 1123 Flat Face Flanges
Inconel SANS 1123 Pipe Flanges
Hastelloy SABS 1123 Flanges
Copper Nickel SABS 1123 Flanges Dealer
Titanium SANS 1123 Blind Flanges


SABS / SANS 1123 Flanges Application Area

Our products range of SABS / SANS 1123 Flanges find application in various areas such as: Petro-Chemical Industries, Ship Building Industries, Heavy Engineering Industries, Fertilizer Plants, power Generation Units ( Nuclear, Hydro or Thermal), Civil Industries, Oil Expansion Projects, Off Shore & On Shore Oil Towers, Valves, Vessels, Pumps, Railways, Steel Plants, Civil Construction Industries, Home Fittings etc.

Other Stock of Flanges

Slip on Flanges Socket weld Flanges Orifice Flanges Blind Flanges Lap Joint Flanges Weld Neck Flanges RTJ Flanges Long Weld Neck Flanges spEctacle blind flanges
ss
